Product Details:

DESCRIPTION

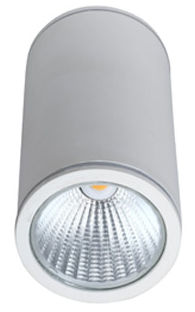

Surface mounted high-power adjustable COB LED luminaire for wall and ceiling mounting.
The luminaire consists of two main components: a cylindrical shaped LED unit that is connected to a rectangular shapedsurface mounted housing.
The LED unit is connected to the housing via a brass bushing which makes the LED unit 360° rotatable along the vertical axeand 0° up to 90° in the vertical plane.
The LED is fitted with a collimator TIR lens for optimal beam shape, optical efficiency and low glare.
Because the wiring is running internally from the LED unit into the housing through the bushing, no visible wires afterinstallation.
The luminaire doesn’t contain a LED driver, so has to be combined with an appropriate constant current LED driver.
The housing clicks on the ceiling bracket by means of two leaf springs, no visible screws after installation. Only for indoor use,protection class IP20.
MATERIALS
LED unit body and pivoting rod: Aluminum body finished in fine-textured scratch-resistant powder coating matt black ormatt white. Any other RAL/NCS finish possible on request
Front ring: aluminum finished in matt black scratch-resistant powder coating
TIR collimator: transparent polycarbonate
Ledholder: white polycarbonate
Aluminum housing finished in fine-textured scratch-resistant powder coating matt black or matt white
Ceiling bracket: galvanised steel, 1mm thickness
TECHNICAL CHARACTERISTICS
Base dimensions: 125mm x 25mm x 25mm (LxWxH)
Led unit dimensions: ø30mm x 80mm
Lens: spot (17°), medium (25°) or flood (46°)
COB high-power LED
Colour temperature: 2700K, 3000K or warmdim (1800-3000K). Other colour temperatures available on request.
CRI90+
2SDCM
Luminaire output: 500lm (medium beam angle, 3000K, white structure)
Luminaire efficiency: 67%
Power consumption: 6W
Luminaire efficacy: 82lm/W
UGR 14
For connection to an electronic constant current LED driver: choose from driver matrix
Class 3 luminaire
Only for indoor use (IP20 rated)
Glow wire rating 960°C
