Product Details:

DESCRIPTION

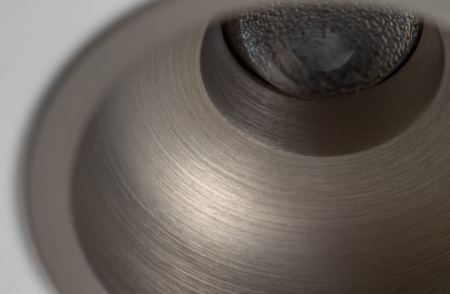

Non-directional, bell-shaped deep recessed luminaire with COB LED technology. Suitable for wall and ceiling application.Available in 3 different designs: recessed, recessed trimless and recessed ‘out’ (meaning the luminaire is only partially recessedas a cylindrical part of the luminaire body protrudes from the mounting surface for about 23mm).
The luminaire consists of 4 main mechanical components: the bell-shaped body, a heatsink, a pair of leaf springs, a glass lens foroptimum beam shape and anti-glare performance. The luminaire doesn’t contain a LED driver, so has to be combined with anappropriate constant current LED driver (350mA or 500mA).
No visible screws or wires after installation. For indoor use. Suitable for wet locations (IP54). The trimless luminaire can becombined with various built-in accessories such as plaster or concrete rings for use in plasterboard, concrete and brick walls orceilings.
MATERIALS
Aluminium body finished in fine-textured scratch-resistant powder coating matt black or matt white. Also available in bronze,silver bronze, champagne and matt black sanded anodization and in black chrome high gloss finish. Or finished in rawaluminium covered with a matt transparent, slightly tinted varnish. Any other RAL/NCS finish possible on request.
Aspherical lens optic in glass
Aluminium heatsink, finished in black electroplating
Internal leaf springs: stainless steel
Ledholder: black polycarbonate
TECHNICALCHARACTERISTICS
Dimensions: ø56 mm x 78.5 mm (ø x H)
Lens: spot (16°) and medium (28°)
COB high-power LED
Colour temperature: 2700K or 3000K (Other colour temperatures available on request)
CRI90+
2SDCM
Luminaire output: 630lm (@500mA, medium beam angle, 3000K and white structure painted luminaire)
Power consumption: 8.5W (@500mA, driver excluded)
Suitable for wet locations (IP54)
Only for indoor use
Glow wire rating: 960°C
