DESCRIPTION

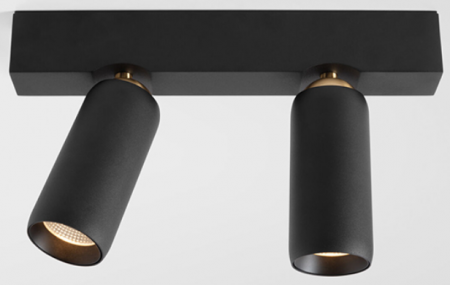

Surface mounted high-power adjustable COB LED luminaire for wall and ceiling mounting. Available in a 1x LED and 2x LED variation.
The luminaire consists of two main components: a cylindrical shaped LED unit that is connected to a rectangular shaped driver housing.
The LED unit is connected to the driver housing via a copper ball-joint structure, which is 360º rotatable along the vertical axe and +45°/-45° in the vertical plane and works with a patented constant friction hinge system.
Thanks to the wiring running internally from LED unit into the driver housing via a flexible sleeve, no visible wires after installation.
The LED unit contains the interchangeable high-gloss aluminium reflector. The aluminium reflector is held in place by means of two magnets.
The rectangular shaped driver housing contains the LED driver. The driver housing clicks on the ceiling plate by means of leaf spring. This results in no visible screws after installation.
Only for indoor use, IP20 protection class.
MATERIALS
Diecasted aluminum LED unit and driver housing, finished in fine-textured scratch-resistant powder coating matt black or matt white
Galvanised steel plate ceiling plate, 1.5mm thickness
Leaf springs: stainless steel
Ball-joint: copper, treated with scratch resistant layer
Ball-joint bearing: POM, black
Helicoidal spring: stainless steel
Flexible sleeve: chrome plated steel
Cup-shade tensioning element: POM, black
LED plate: diecasted aluminum, finished electrocoating, matt black



TECHNICALCHARACTERISTICS
Dimensions
1 lamp unit:
Base: 211 mm x 42 mm x 50 mm (L x W x H), LED unit: ø58 mm x 141 mm
2 lamp unit:
Base: 311 mm x 42 mm x 50 mm (L x W x H), LED unit: ø58 mm x 141 mm
Reflectors
Spot, Medium and Flood beam for monochrome LED
Medium and Flood beam for warm dim LED
COB high-power LED
Colour temperature: 2700K or 3000K, also available with warm dim technology (1800K – 3000K)
dimmability: DALI, 1-10V, Pushdim, Casambi or mains dimming (trailing edge)
CRI 90+
3SDCM
Luminaire output per lamp-unit: 858lm (for 3000 K, medium)
Power consumption: 16.4W (1 lamp fixture), 29.5W (2 lamp fixture) driver included
UGR > 19
Glow wire rating 960°C
Power: 220-230 V, 50-60 Hz
Only for indoor use (IP20)
