Product Details:

DESCRIPTION

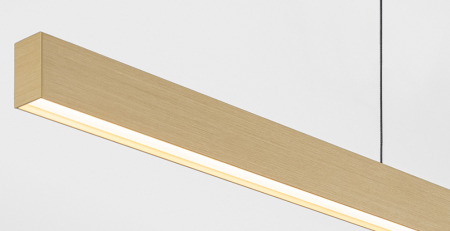

Slim 20mm wide H-shaped customisable LED profile for continuous direct lighting.
The unit consists of an extruded aluminum base with polycarbonate diffuser.
The base profile can either be surface mounted or suspended. A separate type of aluminum cove
profile is offered for recessed trimless application in which the base profile for surface mounting can
be clicked in.
The maximum length of one base profile is 4000mm. 180° and 90° connectors are available to create
structures longer than 4000mm.
Two kinds of diffuser are offered: one that is flush with the front side of the base profile, another type
which is 5mm recessed in the base.
The base profile is intended for use with 24V LED strip. The LED strips are available in two output
variants: 1000lm/m and 2000lm/m. Each tlme available in different colour temperatures.
The 24V LED driver can’t be integrated in the base profile. The suitable 24V driver can be chosen
from a driver matrix, depending on type of dimming and power.
MATERIALS
Base: aluminum, finished with scratch resistant fine-textured powder coating in matt white or matt black. Also available in various brushed and anodized colours: bronze, champagne and silver bronze. Any RAL or NCS finish is possible on request
Diffuser: matt polycarbonate
Endplates: steel, finished with scratch resistant fine-textured powder coating in matt white or matt black. Also wet painted variants available in brushed and anodization look. : bronze, champagne and silver bronze. Any RAL or NCS finish is possible on request
Connection plate 180° or 90°: galvanized steel
Mounting clip: stainless steel
Suspension cables: steel
Strain relief set: galvanized steel
Installation bracket for recessed trimless mounting: galvanized steel

TECHNICALCHARACTERISTICS
Dimensions surface/suspended base profile: 20 mm x 35mm (W x H)
Dimensions recessed base profile: 45mm x 42mm (W x H)
Average base thickness: 1.5mm
Weight of surface mounted base: 0.4kg/m
Weight of cove profile for trimless installation: 0.9kg/m
Suitable for continuous lighting with 24V IP20 medium power flexible LEDstrip of 1000lm/m (10.8W/m), 2000lm/m(18.9W/m) (power values for 3000K ledstrip)
Suitable for continuous lighting with 24V IP65 medium power flexible LEDstrip of 1000lm/m (9.6W/m), 2000lm/m (16.8W/m)(power values for 3000K ledstrip)
To be combined with a constant voltage 24V LED driver. Available in various dimming options. Choose from driver matrix.
Colour temperatures: 2700K, 3000K and 4000K. Other colour temperatures available on request.
CRI90+
3 SDCM
Class 3
Usage with IP65 LED strips results in an overall IP value of IP44, suitable for wet and damp indoor locations. Not suitable for outdoor use.
Glow wire rating 960°C
