Product Details:

DESCRIPTION

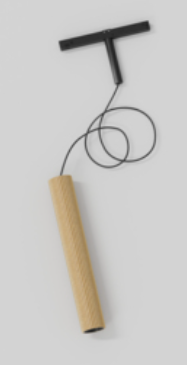

An architectural, cylindrical high-power LED pendant luminaire.
The luminaire consists of 4 main components: a ribbed extruded tube, a LED module, an adapter tube and a 48V low voltage adapter.
The adapter contains the electronic convertor (DALI or 1-10V) that converts 48V DC into a constant current.
The ribbed tube contains the LED module. The LED module contains a high-power COB LED, an aluminium miniaturized flood reflector (40°), a heatsink, a prismatic polycarbonate diffusor and a front ring.
The luminaire comes with 2 meter matt black power cable and is connected to the adapter tube. The power cable can be shortened according the need of pending height.
Available in three tube lengths: 300mm, 600mm and 900mm.
The luminaire is available in many rich anodized colours or in matt white powder coating.
No visible screws after installation.
Only for indoor use, IP20 protection class.
MATERIALS
Aluminium ribbed extruded tube, anodized or powder coated. Available anodization colours: black, bronze, or champagne.Or finished in fine-structured scratch-resistant grey white powder coating.
Aluminium adapter tube, finished in scratch-resistant powder coating
Aluminium reflector, high gloss
Aluminium heatsink, finished in black electroplating
Aluminium front ring and back cover plate, both finished in matt black spray paint
Internal leaf springs: stainless steel
Microprismatic polycarbonate LED optical layer
Ledholder: black polycarbonate
Power cable: 2-pole FEP/TPE, 2x 0,6mm², matt black, outer diameter 4.4mm
Adapter: polycarbonate black or white

TECHNICAL CHARACTERISTICS
Dimensions: ø46mm and length 300mm/600mm/900mm (tube)
Reflector flood beam angle (40°)
COB high-power LED
Colour temperature: 2700K, 3000K or warmdim (1800-3000K)
CRI90+
2SDCM
Luminaire output: 794lm (3000K)
Power consumption: 10.3W (driver included)
Luminaire efficacy:77lm/W (driver included)
Luminaire efficiency: 79% (3000K)
UGR 25.8 (@500mA, 3000K)
Available with 1-10V or DALI dimmable driver
Class 3
Only for indoor use (IP20)
Glow Wire Rating: 960°C
