Product Details:

DESCRIPTION

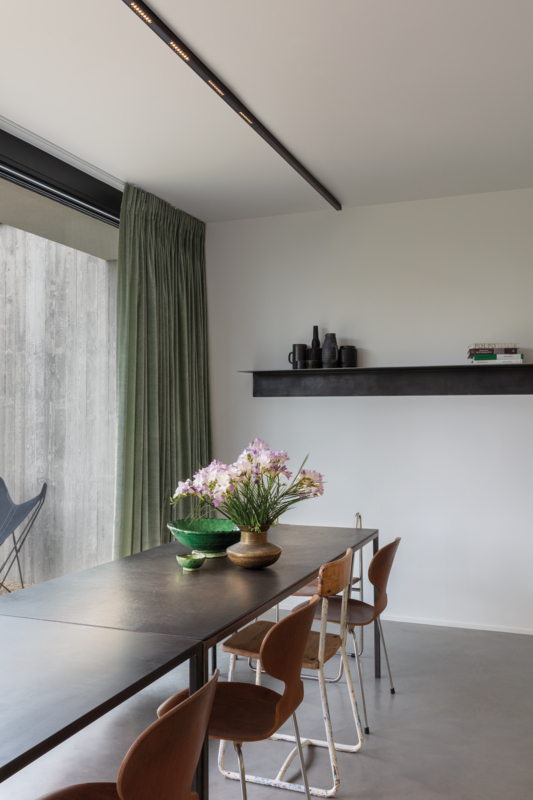

Slim square shaped LED linear luminaire suitable for use in a low voltage (48V DC) magnetic rail system.
The luminaire consists of a polycarbonate body and uses a PCB with 8 or 16 high power leds as light source. 8 or 16 separate square PMMA lenses are used as optical system to become a medium or flood light beam.
The LED PCB is mounted on an aluminium backplate for optimum heat dissipation.
The backside of the polycarbonate housing is covered with a polycarbonate cap.
The luminaire contains the adapter that fits in the low voltage magnetic rail system.
No visible screws or wires.
MATERIALS
Polycarbonate housing and backplate in matt white or matt black
PMMA lens, polycarbonate lensholder
Heatsink: aluminium, black electro-plated
TECHNICAL CHARACTERISTICS
Dimensions:
8 leds version: 17mm x 18mm x 302mm (W x H x L)
16 leds version: 17mm x 18mm x 429mm (W x H x L)
Available in DALI or 1-10V dimming
PCB fitted with 8 or 16 high power LED’s, 8W or 19W (including driver)
Luminaire output:
8 leds version: 796lm, 100lm/, UGR17 (for 3000K, medium beam, matt white version)
16 leds version: 1623lm, 85lm/W, UGR18 (for 3000K, medium beam, matt white version)
Colour temperature: 2700K and 3000K
CRI90+
3SDCM
Luminaire efficiency: 85% (for 3000K, matt white version)
48V driver excluded, to be combined with a 48V DC constant voltage driver to be chosen from driver matrix
Only for indoor use (IP20)
Class 3
